Cyclone Dust Collector

Introduction of Cyclone Dust Collector

Cyclone Collector is simple, take up small volume, low investment, easy operation and maintenance, moderate pressure force loss, low power consumption, all kinds of build materials are available. It can be used for high temperature, high pressure and corrosion silicon circumstance. And it can directly recycling dry particles, etc. Cyclone is generally used to capture more than 5-15 PM particles, in addition to the dust efficiency can reach 80%, main shortcoming is to capture the < 5 PTM particles. The spiral wind dust catcher with bag filter combined into an organic whole.

Cyclone Collector are often employed as an Initial Stage Collector to lighten heavy dusts loads before being sent to a Primary Stage Fabric Collector. By removing coarse particles from the gas stream, and allowing later stage Fabric Collectors to solely remove finer particles, these collectors increase the efficiency and service life of Baghouse and their Filters. Thus protecting your larger and most costly investment from unnecessary wear and tear.

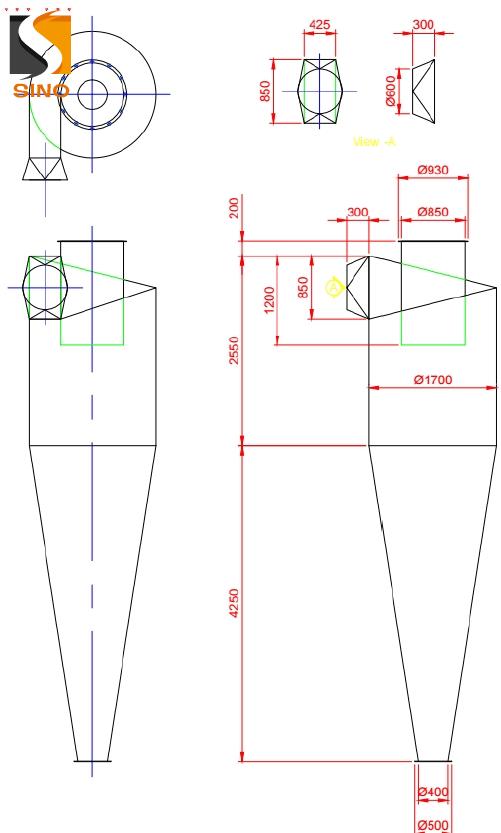

Structure of Cyclone Dust Collector

Cyclone pulse bag filter is in ordinary cylindrical pulse bag filter on the lower part of the cylinder or set up a certain length of outer cylinder. Inner and outer cylinder section form a relatively independent and sealed cavity, and the tangential inlet on the outer cylinder.

Working principle

As the dirty air enters the cyclone dust collector, it is forced into a swirling movement. This results in a centrifugal force acting on the dust particles suspended in the air stream. The particles, denser than the air, are forced to move outwards, towards the cyclone dust collector wall. They then fall downwards, towards the dust exit. The clean air is eventually directed towards the centre of the cyclone and leaves through the gas exit.

Features of Cyclone Dust Collector

The Cyclone dust collector hasn't any moving parts. It's convenient for manufacture and management. With the same air volume, The cyclone collector is more smaller size, and the price is more cheaper. As the second dedusting and matched with bag filter, it can be installed vertically, also can be installed in a horizontal. So, it is easy to install and application. The cyclone collector efficiency of resistance is not affected for many sets of cyclone collector in multiple using when processing the large dust gas air volume.

Application Fields

1. The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, fire-retardant factories and power stations.

2. Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electrolytic analysis, tin, zinc, cooper and other rare metals.

3. Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers.

4. Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics.

5. Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster.

6. Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.

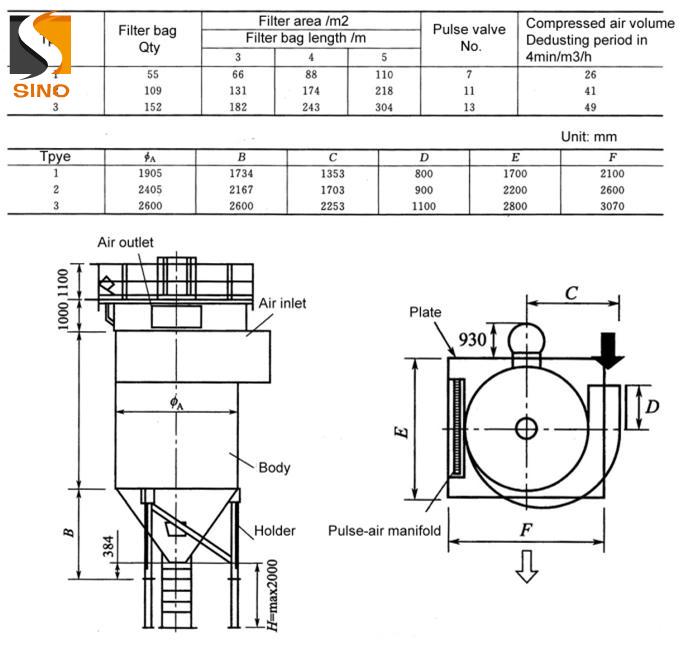

Products Specifications
