Filter Cage

Products Range

We can supply a complete range of standard & non-standard cage designs to suit the customer’s requirements and all types of filter bags. Cage configuration for circular, diamond, oval, flat-shaped can be designed and worked in a variety of metal grades of mild steel, stainless steel, or other specialist alloys.

Production Standard

1. The support rings and vertical wires must be kept even distribution and with enough intensity and stiffness to against the air pressure during filtration, meanwhile, it also can avoid damage and distortion effectively during transportation.

2. The welding spot on filter cages must be firm without sealing-off, rosin joint and missing solder.

3. The surface of cages must be smooth and flatness, no welding scar, uneven and burr.

4. The spring type filter cages must be kept enough wires and flexibility to ensure even space after draw away.

5. It is necessary to do anti-corrosive processing, such as galvanizing, spraying and painting. if used for high temperature, it must meet this request.

Products Features

· Automatic welding a molding, no leakage welding, smooth appearance.

· Surface treatment using advanced technology, high temperature corrosion resistance.

· Big support ring and longitudinal reinforcement density, anti-tress pressure, not easy to deformation.

Products Specifications

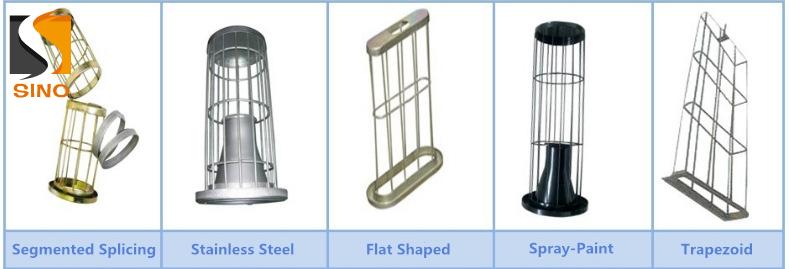

Types: Round Style/Flat Style/Envelope Style/ Special Style

Number of Wires: 8/10/12/16/20/24 vertical wires

Ring Space: Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)

Cage Diameter: Cage diameters range from 4 inch to 8 inch (100mm to 200mm)

Wire thickness: Wire thickness ranges are 2mm to 5mm

Material: Carbon Steel, Galvanized Steel, Stainless Steel

Finish treatment: Epoxy, PVC vinyl coating

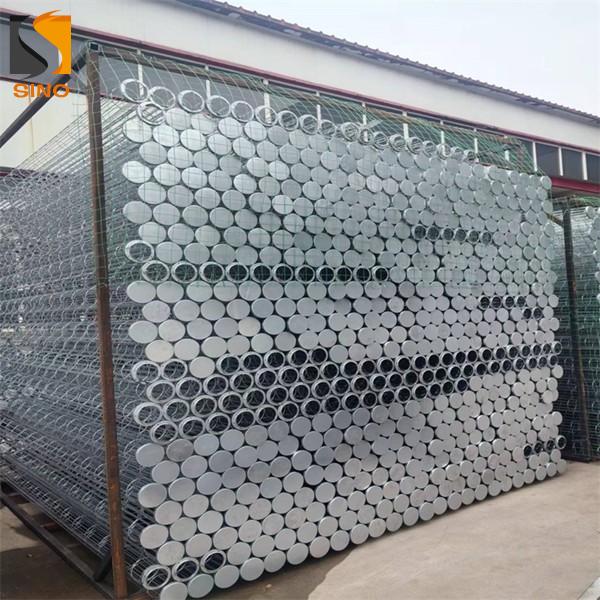

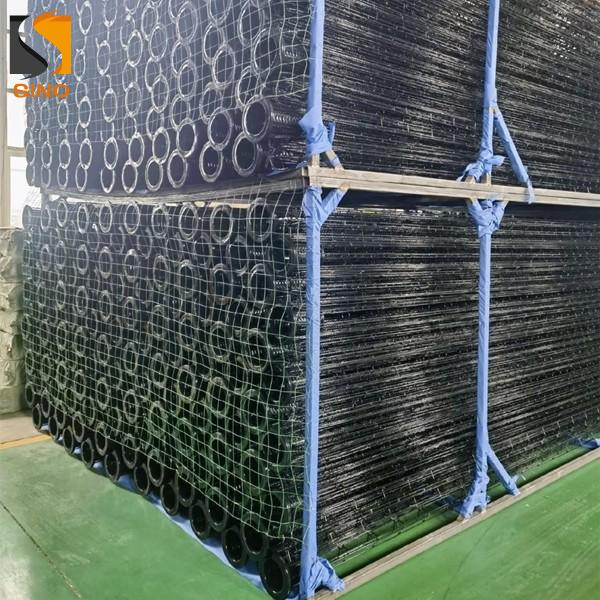

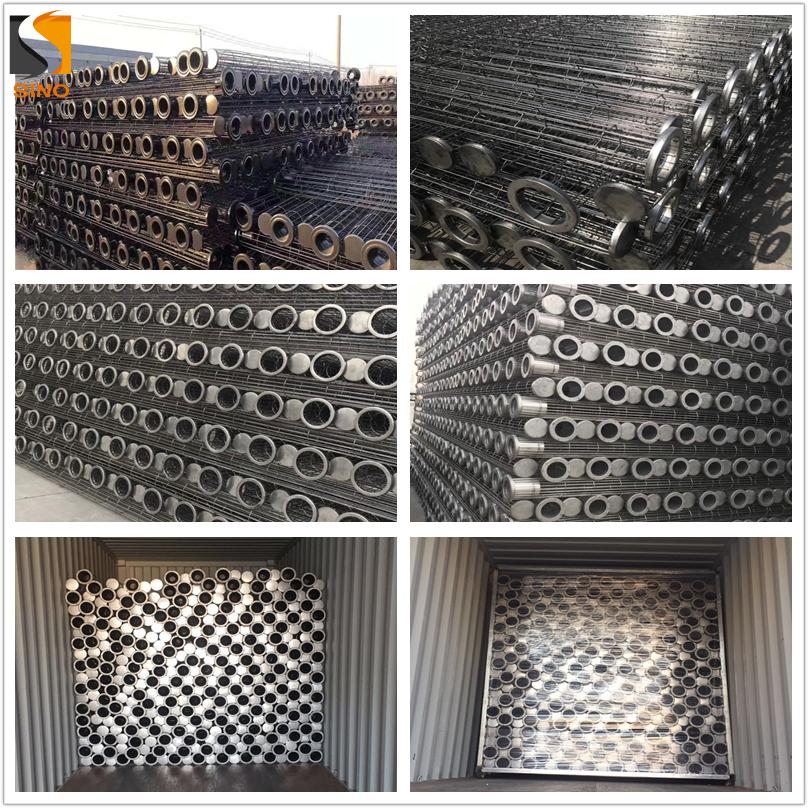

Packaging: Cages are packed in custom designed cartons

Usage: Dust from factory of mine, wood, Cement, chemical, medicine, dying, Paint, plastic, food & other industry, such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.

Products Scenarios
