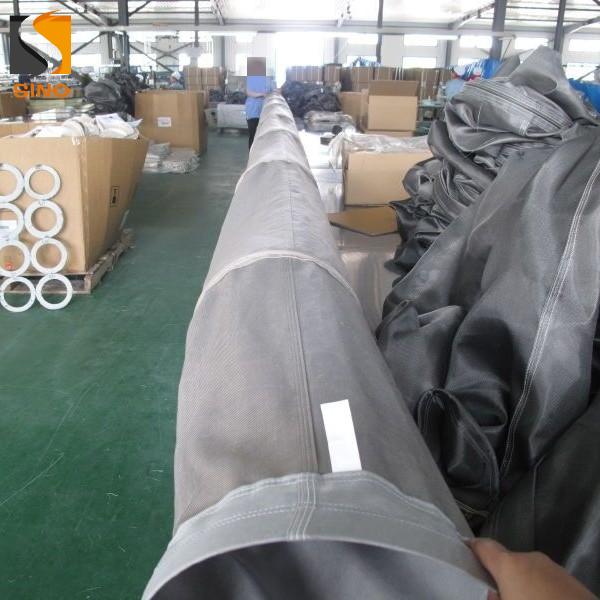

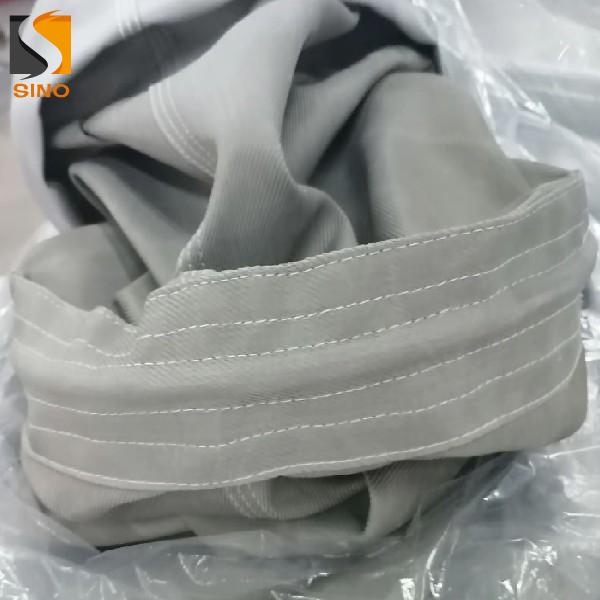

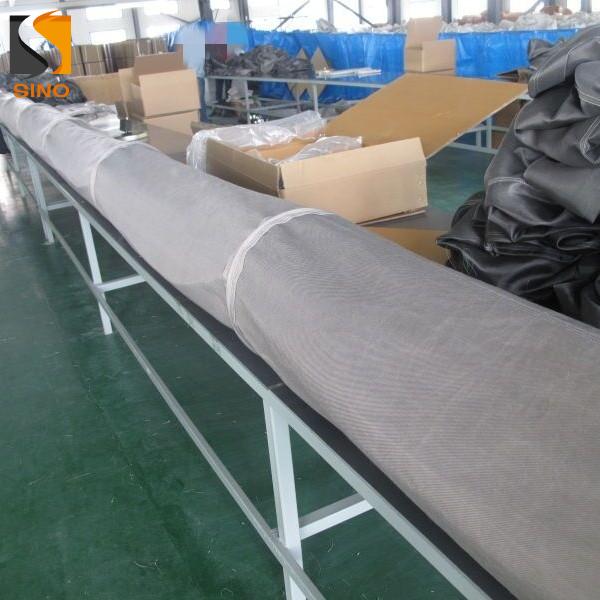

Filter bag are composed by woven filter material bag body, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.
Fiberglass texture filter cloth is made by fiberglass woven cloth with chemical treatment. There are PTFE treatment, Acid-resistant treatment, graphite/ silicone oil/ PTFE mixed treatment.
Technical Specification Sheet | |||||||
Item No. | Finish | Weave Pattern | Weight (g/m2) | Air Permeability (m3/m2·min@127pa) | Tensile Strength (N/25cm) | Mullen Burst (PSI) | |
Warp | Weft | ||||||
S-01P | PTFE | Double Twill | 750±25 | 15-30 | ≥2400 | ≥2000 | ≥800 |
S-01N | Acid-resistant | Double Twill | 750±25 | 15-30 | ≥2400 | ≥2000 | ≥800 |
S-01M | Acid-resistant | Double Twill | 730±25 | 15-30 | ≥2400 | ≥2000 | ≥800 |
S-04P | PTFE | Double Twill | 650±20 | 15-30 | ≥2400 | ≥1800 | ≥800 |
S-02P | PTFE | 1/3 Twill | 500±15 | 15-30 | ≥2000 | ≥1200 | ≥800 |
S-02S | PTFE/Graphite /Silicone | 1/3 Twill | 470±15 | 15-30 | ≥2000 | ≥1000 | ≥800 |
S-02N | Acid-resistant | 1/3 Twill | 500±15 | 15-30 | ≥2000 | ≥1200 | ≥600 |
S-02M | Acid-resistant | 1/3 Twill | 480±15 | 15-30 | ≥2000 | ≥1200 | ≥600 |
S-03P | PTFE | 1/3 Twill | 340±15 | 15-30 | ≥1400 | ≥900 | ≥400 |
S-03N | Acid-resistant | 1/3 Twill | 340±15 | 15-30 | ≥1400 | ≥900 | ≥400 |
S-03M | Acid-resistant | 1/3 Twill | 325±15 | 15-30 | ≥1400 | ≥900 | ≥400 |
