Polyester Airslide Fabric

Introduction

We provide Airslide belt for conveying bulk material by air gravity. The main use of  Airslide belt is discharging, declining transportation or homogenizing the powder or  small granular material in quiescent condition. Our airslide belt is named as Airslide  fabric, Airslide membrane, Air slide cloth, Air slide canvas, Air permeable fabric, and  Fluidization cloth, fluidising fabric, etc by our customer. We adopt 100% polyester for  airslide fabric material.

Our fabrics can be used at temperatures between -60°C and +150°C. The airslide  fabrics are made from polyester yarns. We are also, however, able to weave fabrics to our customers' specific demands for air  permeability and mechanical strength.

Advantages

 No moisture absorption

 No caking

 Resistant to rotting and decomposition

 Complete unloading without residues

 Consistent fluidization over the complete surface

 Good resistance to abrasion

 Low wear and therefore longer life

 Low shrinkage even when used under hot and humid conditions

Working principle

In cement plant: An Airslide belt is in the middle of a chute. Powder material will come into the chute  above Airslide belt. Material will flow to the chute lower side as pneumatic blower  down Airslide belt. That's why we say Airslide belt can move powder material  because of the wind power. And then, the rest wind will go out from the top of the  chute. Through the moving, no parts moved except powder material. So that it can  spare more energy and maintain cost, etc.

In fluidization silo: Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for  installation as aeration units on the sloped conical bottoms of bins and silos to aid in  the withdrawal of dry relatively free-flowing material.

Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor  units in lengths of 1.5 or 3m depend on the slope length of the conical storage area.  Some spoke patterns are normally used with materials which have good fluidization  characteristics. Others spoke patterns provide maximum aeration for difficult  materials which can be fluidized.

In cement vessel's hold: The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide  fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels  with oil-free compressed air and make the cement flow to the lowest point, where the  discharge gate is installed.

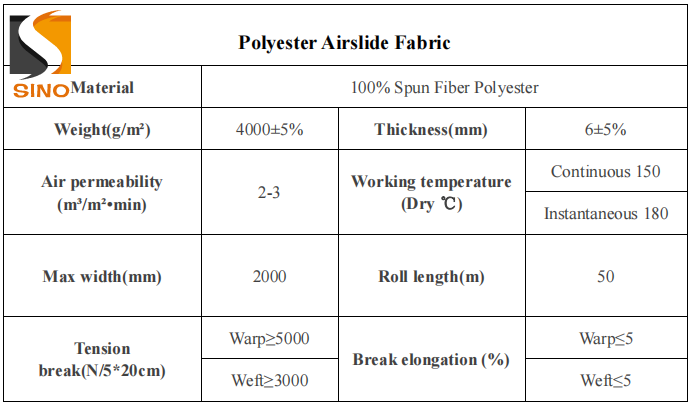

Specifications
